Discontinued product

Prod.No. 94456 EAN: 4007529944569 L8-LEDN

  • Voltage: 230 V AC ±10% 50 / 60 Hz

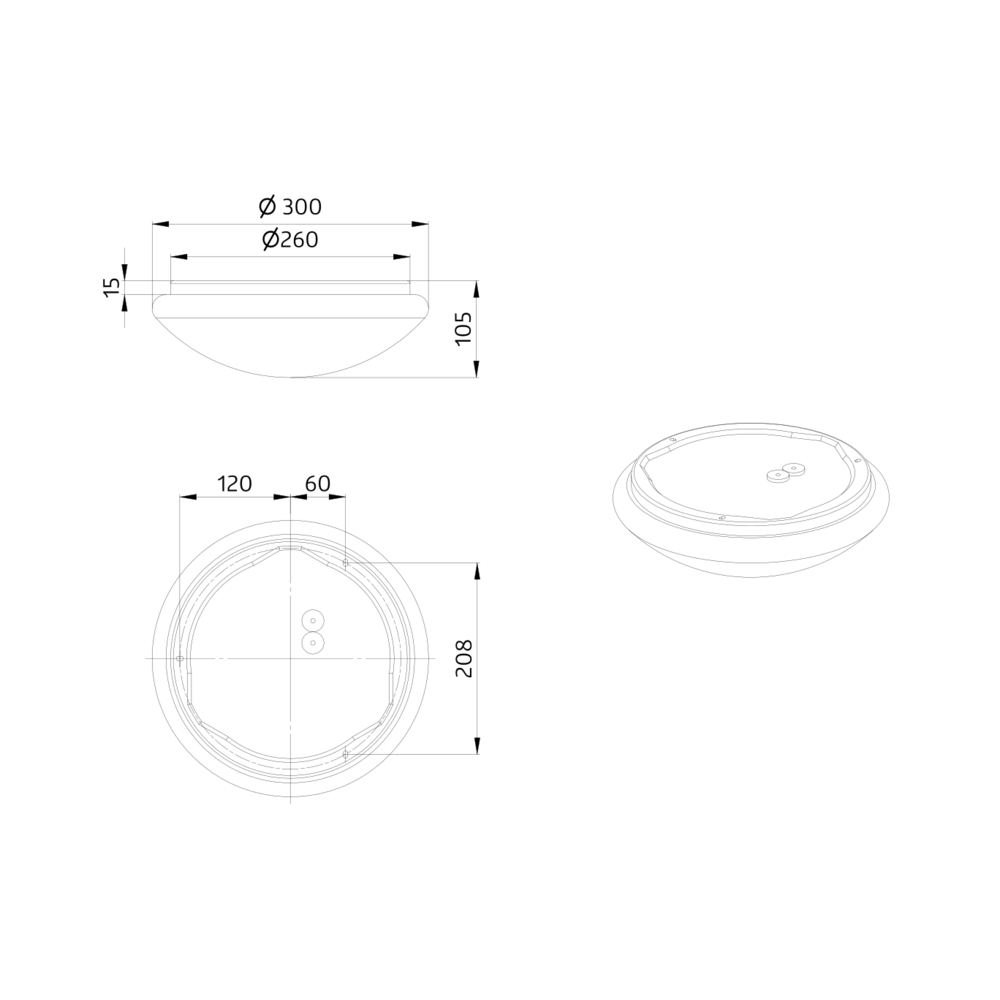

  • Dimensions: Ø 300 x 110 mm
  • Luminous flux / intensity: LED circuit board securely mounted
    Colour temperature: 4000 K neutral white
    Luminous flux of LED: 1400 lm
    Luminous flux of light 1000 lm

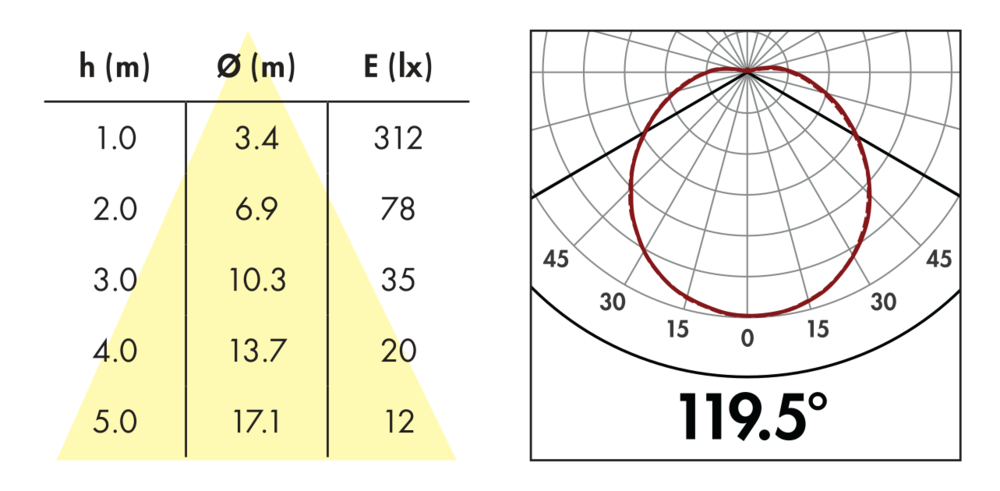

    Peak: 312 cd
Designation Value
Voltage: 230 V AC ±10% 50 / 60 Hz
Dimensions: Ø 300 x 110 mm
Luminous flux / intensity: LED circuit board securely mounted
Colour temperature: 4000 K neutral white
Luminous flux of LED: 1400 lm
Luminous flux of light 1000 lm
Peak: 312 cd
Efficiency: 83 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI 81.3 / TM30: 80.4
Rated life time: 50000 h (L80/B10)
Power consumption: 12 W / PF 0.94
Degree / class of protection: IP40 / Class I
Impact strength: IK02
Ambient temperature: -20 °C to +40 °C
Housing: Coated sheet steel case with LED circuit board, plastic cover
Lens: PMMA diffuser, white
Material color: white

Round LED light for wall or ceiling mounting

Energy efficient light with long service life > 50,000 hours

Broad light distribution using diffused light covers

Application examples:
corridors, halls, staircases, storage rooms, cellars, toilets

Tender document 94456 Downloads
Short instruction Downloads
Manual Downloads
Photometric data EULUMDAT Downloads
