16 m

Prod.No. 94457 EAN: 4007529944576 L9-LEDN-HF

  • Voltage: 230 V AC ±10% 50 / 60 Hz

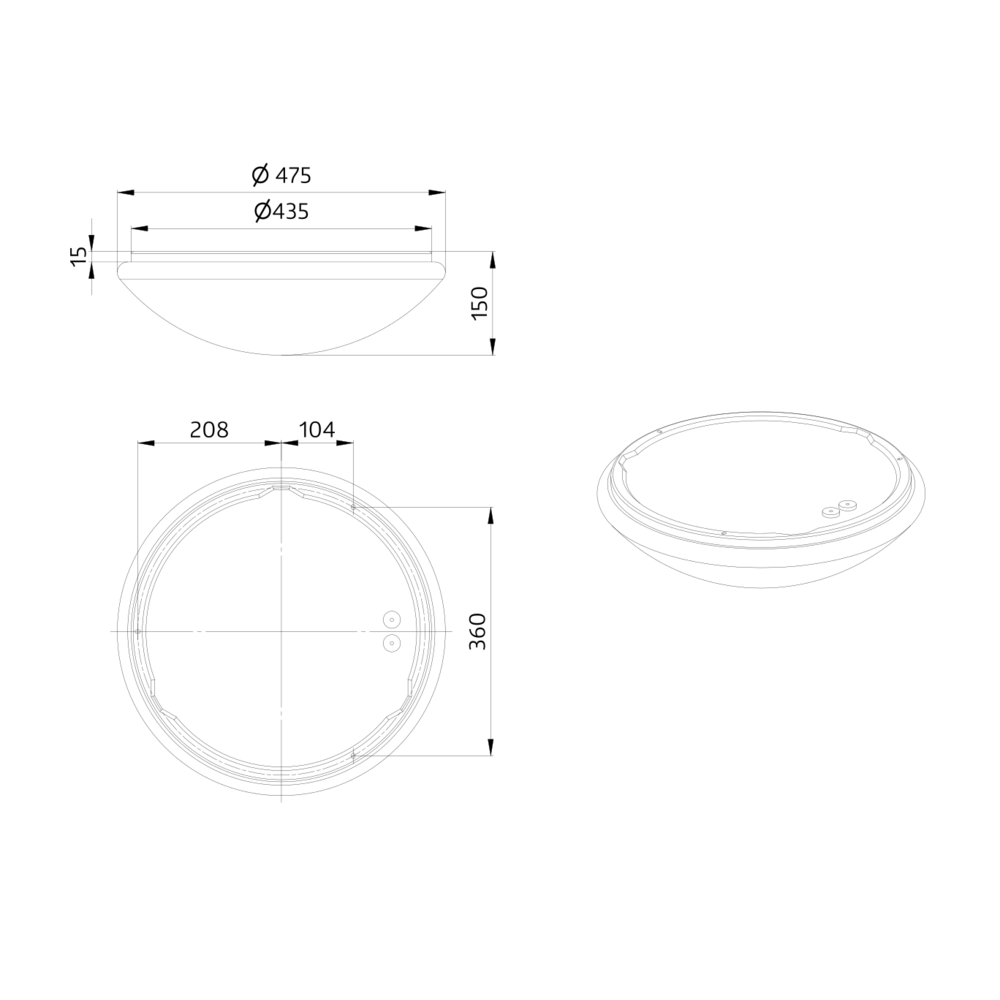

  • Dimensions: Ø 475 x 150 mm
  • Luminous flux / intensity: LED circuit board securely mounted
    Colour temperature: 4000 K neutral white
    Luminous flux of LED: 2800 lm
    Luminous flux of light 2200 lm

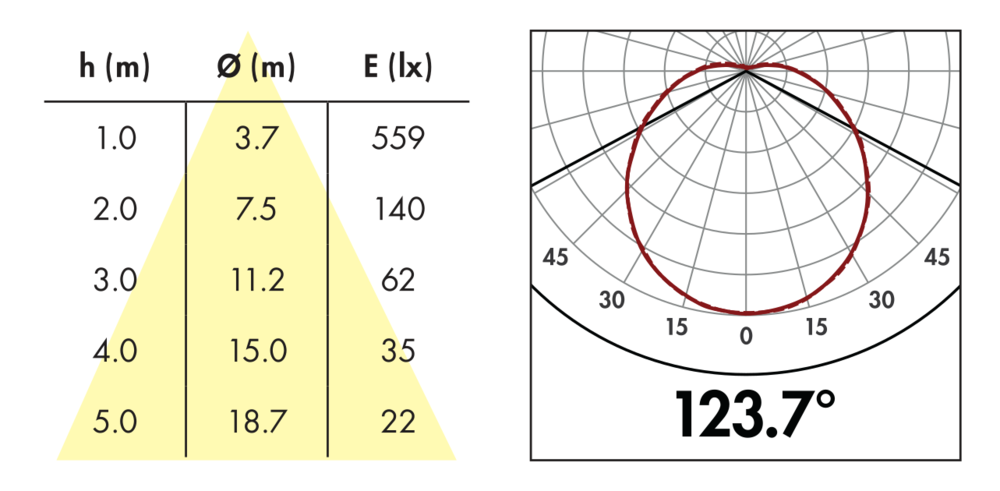

    Peak: 559 cd
Designation Value
Voltage: 230 V AC ±10% 50 / 60 Hz
Dimensions: Ø 475 x 150 mm
Luminous flux / intensity: LED circuit board securely mounted
Colour temperature: 4000 K neutral white
Luminous flux of LED: 2800 lm
Luminous flux of light 2200 lm
Peak: 559 cd
Efficiency: 92 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI 82.1 / TM30: 81.5
Rated life time: 50000 h (L80/B10)
Power consumption: 24 W / PF 0.94
Degree / class of protection: IP40 / Class I
Impact strength: IK02
Ambient temperature: -20 °C to +40 °C
Housing: Coated sheet steel case with LED circuit board, plastic cover
Lens: PMMA diffuser, white
Material color: white
Microwave detector
Designation Value
Radar / HF technology: 5.8 GHz, < 10 mW
Switching power: 1200 W, cos φ = 1
600 VA, cos φ = 0.5
Detection area: horizontal 360° (Wall mounting)
Ø 0.4 – 16 m
Follow-up time: 5 sec – 15 min
Switch-on threshold: 2 – 2000 Lux

Round LED light for wall or ceiling mounting with integrated microwave detector

Microwave detector not visible externally

HF technology: 5.8 GHz - reacts to the smallest motion, independently of temperature

Extremely short response time

Energy efficient light with long service life > 50,000 hours

Broad light distribution using diffused light covers

Possibility to connect other lights which are also controlled by the one microwave detector

Range, switch-on threshold and follow-up time set via potentiometers

Application examples:
corridors, halls, staircases, storage rooms, cellars, toilets

Tender document 94457 Downloads
Short instruction Downloads
Manual Downloads
