14 m

Prod.No. 93632 EAN: 4007529936328 AL93-20-300-LED-3C-HF

  • Voltage: 220 – 240 V AC 50 / 60 Hz

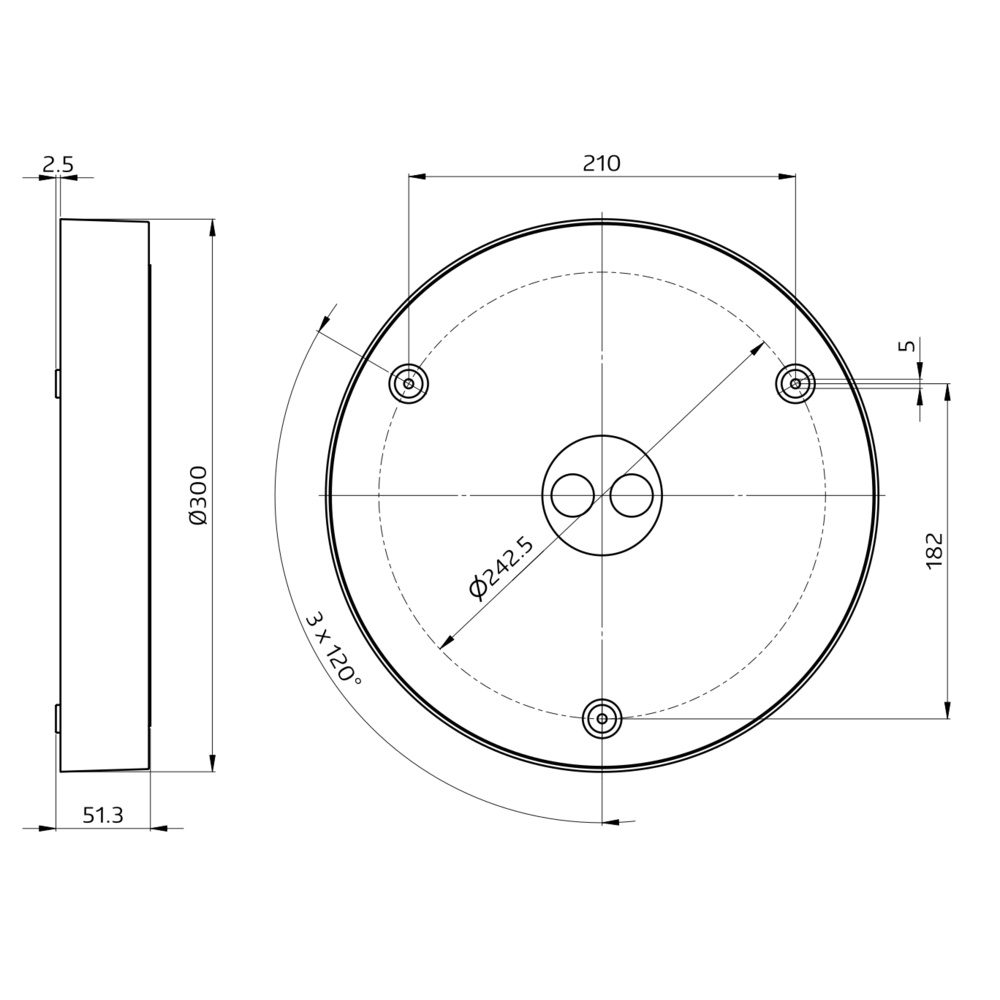

  • Dimensions: Ø 300 x 51.3 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Designation Value
Voltage: 220 – 240 V AC 50 / 60 Hz
Dimensions: Ø 300 x 51.3 mm
Colour temperature: 3000 / 4000 / 5700 K

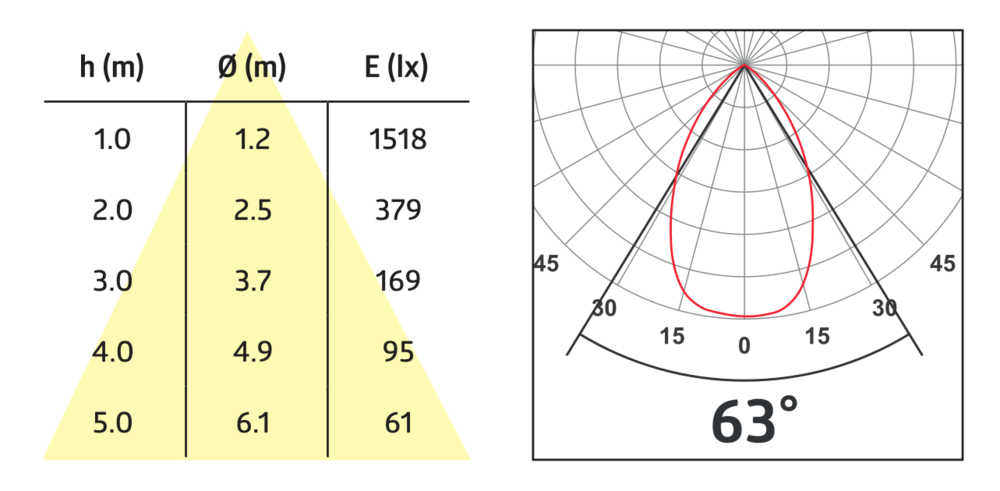

Luminous flux / intensity: 1600 / 1850 / 1700 lm
Anti-glare: UGR < 19
Efficiency: 80 / 92 / 85 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI > 80
Rated life time: 50000 h (L80/B10)
Power consumption: 20 W / PF 0.9
Degree / class of protection: IP54 / Class II
Flammability rating: UL-94 V2, 750 °C
Impact strength: IK08
Ambient temperature: -20 °C to +45 °C
Housing: Polycarbonate / ADC12
Material color: white, similar to RAL9016
Microwave detector
Designation Value
Radar / HF technology: 5.8 GHz, < 0.5 mW
Detection area: horizontal 360° (Ceiling mounting)
Ø 2 – 8 m
Range: max. Ø 14 m towards
Follow-up time: 5 sec – 30 min
Switch-on threshold: inactive / 5 – 50 Lux

Flat round LED luminaires for ceiling mounting

Three colours in one light, switchable selection between warm, neutral or daylight white illumination

Energy efficient light with long service life > 50,000 hours

Anti-glare system with recessed LED and diffusers

Integrated microwave sensor, not externally visible, wide detection range

HF technology: 5.8 GHz - reacts to the smallest motion, independently of temperature

DIP switches to set follow-up time, switch-on threshold and sensor sensitivity

Sturdy plastic case made of polycarbonate

Easy installation with a socket incl. Clamps

Application examples:
corridors/hallways, staircases, toilets, equipment rooms, entrance halls, plumbed rooms/bathrooms

Tender document 93632 Downloads
CE declaration of conformity 93632 (en) Downloads
Short instruction Downloads
