10 m

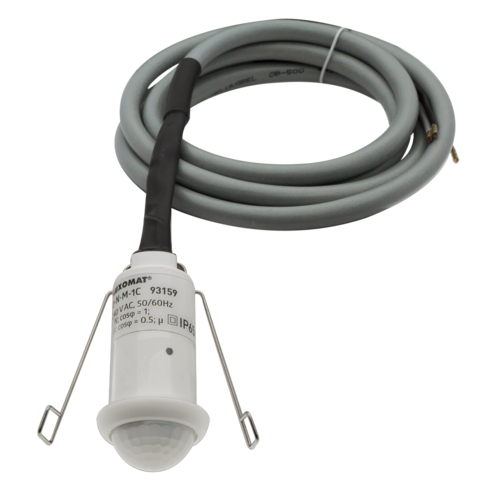

Prod.No. 93159 EAN: 4007529931590 PICO-N-M-1C-FC

  • Voltage: 110 – 240 V AC 50 / 60 Hz

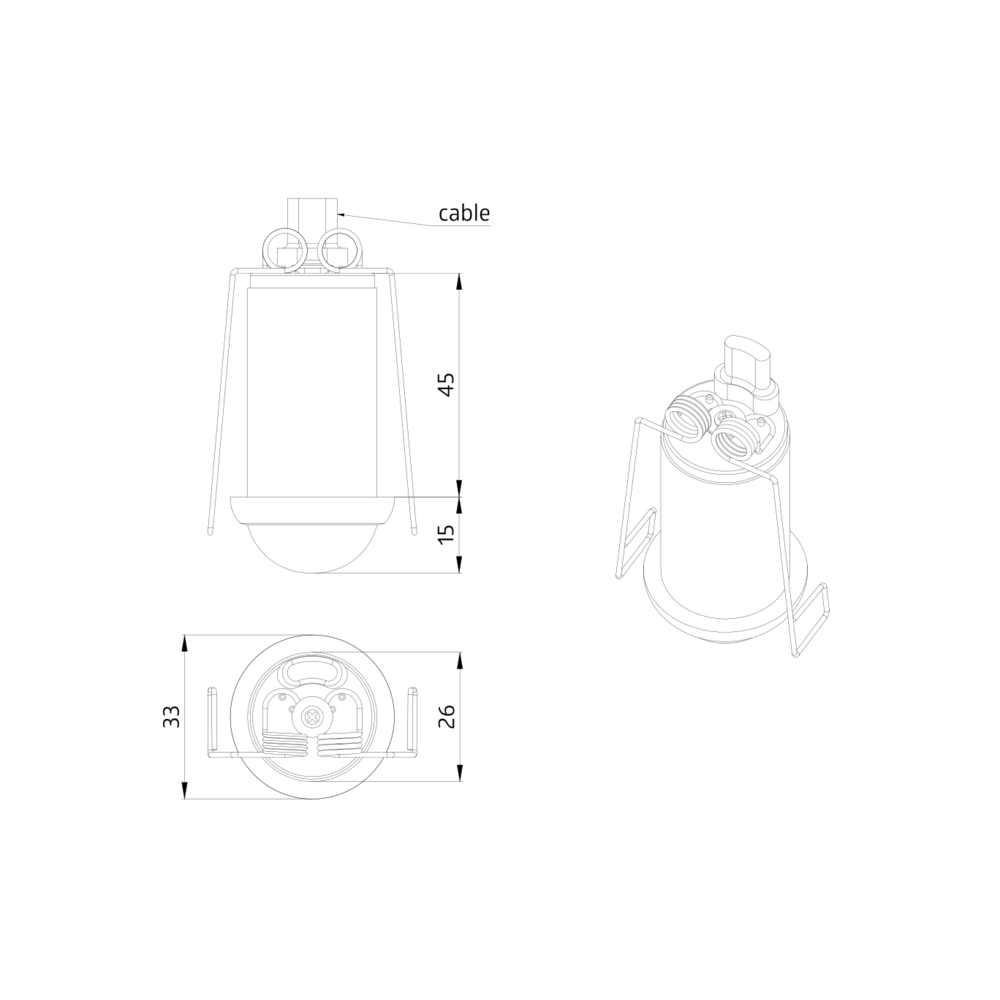

  • Dimensions: Ø 33 x 60 mm
  • Power consumption: approx. 0.35 W
Communication interface
switching output, switching output (1 Channel)
Slave
switching output, switching output (1 Channel)
KNX DALI-2 input device (BMS), DALI DALI-LINK, DALI DALI-SYS
Designation Value
Voltage: 110 – 240 V AC 50 / 60 Hz
Dimensions: Ø 33 x 60 mm
Power consumption: approx. 0.35 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 10 m across
max. Ø 6 m towards
max. Ø 4 m seated
Monitored area (tangential movement): 78 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP65 / Class II
Impact strength: IK04
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: white mat, similar to RAL9010
Cable length: 140 cm
Channel 1 (lighting control)
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
400 W LED
Type of contact (k): 1x µ-contact, NO contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Light measuring: Mixed light measuring

Mini-occupancy detector, no additional power unit, suitable for high-humidity locations

One channel for light switching

Manual switching via push-button possible

Easy operation with remote control (required)

Version as master device

Detection area can be extended by using slave devices

Mounting with clip ring (included) for lights or with spring clips for suspended ceilings

Factory settings 10 min and 500 lux

Application examples:
entrance halls, corridors/hallways, toilets, equipment rooms, small offices, open-plan offices, conference rooms
