3.5 m
Discontinued product

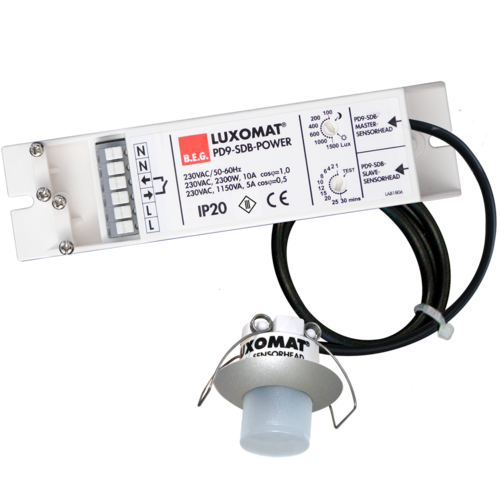

Prod.No. 92932 EAN: 4007529929320 PD9-M-1C-SDB-IP65-GH-FC

  • Voltage: 230 V AC ±10% 50 Hz

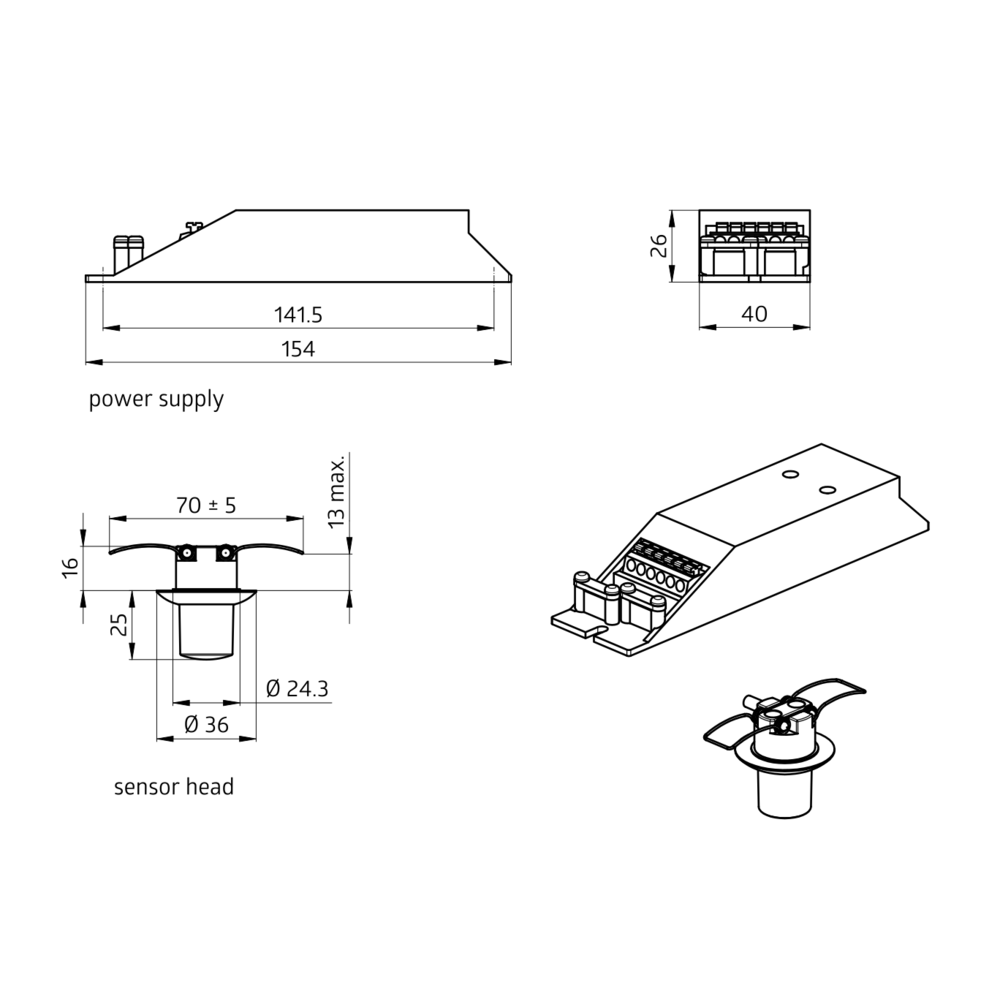

  • Dimensions: Sensor head: Ø 36 x 40 mm, Power supply: 154 x 38 x 25 mm
  • Power consumption: 2.2 W
Voltage
230 V AC ±10% 50 Hz
110 – 240 V AC 50 / 60 Hz
Show available options
230 V AC ±10% 50 Hz
230 V AC ±10% 50 / 60 Hz
Show available options
 12 – 48 V AC / DC
Show available options
 24 V DC
Show available options
 via KNX BUS
Show available options
Mounting height min./max./recommended
5 m / 10 m / 6 m
2 m / 5 m / 2.5 m 2 m / 3 m / 2.5 m
Show available options
5 m / 10 m / 6 m
Degree / class of protection
IP65
IP20
Show available options
IP65
Cable length
350 cm
45 cm, screened
Show available options
 45 cm
Show available options
350 cm
350 mm
Show available options
 50 cm
Show available options
Communication interface
switching output, switching output (1 Channel)
switching output, switching output (1 Channel)
Slave
Show available options
 switching output, switching output (2 Channel)
Show available options
 DALI, DALI-2 application controller
Show available options
 KNX
Show available options
Mounting location
luminaire mounting, Ceiling mounting
luminaire mounting, Ceiling mounting
Ceiling mounting, luminaire mounting
Show available options
 Ceiling mounting
Show available options
 luminaire mounting
Show available options
Colour
silver
white
silver
Designation Value
Voltage: 230 V AC ±10% 50 Hz
Dimensions: Sensor head: Ø 36 x 40 mm, Power supply: 154 x 38 x 25 mm
Power consumption: 2.2 W
Detection area: horizontal 360° (Ceiling mounting)
Range: max. Ø 3.5 m across
Monitored area (tangential movement): 9 m² / 6 m mounting height
Mounting height min./max./recommended: 5 m / 10 m / 6 m
Degree / class of protection: IP65 / Class III
Impact strength: IK03
Ambient temperature: -25 °C to +50 °C
Housing: polycarbonate, UV-resistant
Material color: silver mat, similar to RAL9022
Cable length: 350 cm
Channel 1 (lighting control, potential-free (dry))
Designation Value
Switching power: 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
400 W LED
max. inrush current Ip (20 ms) = 80 A
Type of contact (k): 1x µ-contact, dry NO contact
Follow-up time: 15 sec – 30 min, Pulse
Switch-on threshold: 10 – 2000 Lux
Light measuring: Mixed light measuring

Mini-occupancy detector designed for high-humidity locations especially for large mounting heights

One potential-free (dry) switching contact

Version as master device

One additional Slave device sensor can be directly connected

Additional functions can be set up using the optional remote control.

Spring clips for quick and easy installation in suspended ceilings and light fittings

Includes 45 mm cover ring and blind

black
Prod.No. 93067

BLE-IR-Adapter

  • Dimensions: 40 x 55 x 103 mm
  • Material color: black
  • Frequency: 2.4 GHz ISM band, GFSK 0.2 dBm + 5.3 dBi = 5.5 dBm
Go to product
-
Prod.No. 92201

IR-PD9

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 80 x 60 x 8 mm
  • Material color: -
Go to product
-
Prod.No. 92159

IR-PD-Mini

  • Battery: 3.0 V Lithium CR2032 (inclusive)
  • Dimensions: 57 x 35 x 7 mm
  • Material color: -
Go to product
white
Prod.No. 10880

RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 38 x 12 x 26 mm
  • Degree / class of protection: IP20 / Class II
Go to product
Prod.No. 10882

Mini-RC-Arc extinction kit

  • Voltage: 230 V AC ±10%
  • Dimensions: 50 x 23 x 8 mm
  • Degree / class of protection: IP20 / Class II
Go to product
Tender document 92932 Downloads
CE declaration of conformity 92932 (en) Downloads
Short instruction Downloads
Manual Downloads
