Prod.No. 93776 EAN: 4007529937769 Mounting set PICO

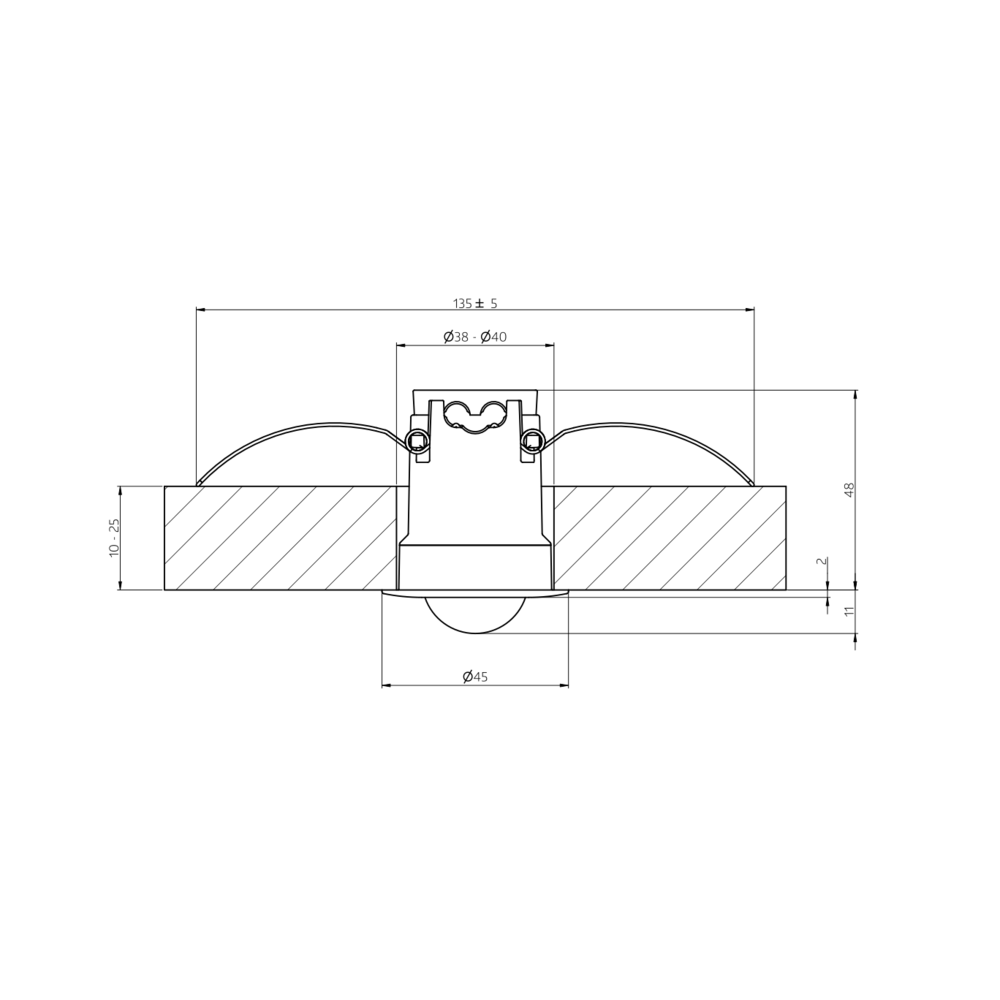

  • Dimensions: Ø 45 x 50 mm
  • Degree / class of protection: IP20
  • Housing: polycarbonate, UV-resistant
Designation Value
Dimensions: Ø 45 x 50 mm
Degree / class of protection: IP20
Housing: polycarbonate, UV-resistant
Material color: anthracite, similar to RAL7016

Mounting kit for FC

With strain relief for 2x KNX cables or 1x low-voltage cable Ømax= 8.5mm

Perfect centring of the sensor via the front ring

Detection area can be restricted with blinds

For usability/compatibility of the accessories please refer to the descriptions of the main articles

Suitable for: 93529, 93539, 93547, 93908, 93909, ...

Tender document 93776 Downloads
Short instruction Downloads
Info Downloads

Alternative

anthracite
Prod.No. 93786

SM socle mounting set IP54 PD4N H

  • Dimensions: Ø 110 x 45 mm
  • Degree / class of protection: IP54
  • Material color: anthracite, similar to RAL7016
Go to product
anthracite
Prod.No. 93751

SM socle mounting set IP54 PD2N- / PD4N-FM

  • Dimensions: Ø 109 x 19 mm
  • Degree / class of protection: IP54
  • Housing: polycarbonate, UV-resistant
Go to product
anthracite
Prod.No. 92634

Frame IP20 Indoor 180

  • Dimensions: 86 x 86 mm
  • Degree / class of protection: IP20
  • Housing: polycarbonate, UV-resistant
Go to product
