10 m
Set

Set Indoor 180-M-2C covering not included Frame IP20 Indoor 180

  • Voltage: 110 – 240 V AC 50 / 60 Hz
  • Dimensions: covering not included 70 x 70 x 61 mm
  • Power consumption: approx. 0.4 W
To receive the bundle according to the technical specification, please order the items listed. Art.No. 92661 Art.No. 92632
Voltage
110 – 240 V AC 50 / 60 Hz
110 – 240 V AC 50 / 60 Hz
110 – 240 V AC 50 / 60 Hz <br>5 x NiMH / 30 AAAA<br>1.2 V / 200 mAh
Show available options
 11 – 48 V AC / DC
Show available options
 110 – 240 V AC 50 / 60 Hz Power supply via staircase switch
Show available options
 via KNX BUS
Show available options
 via DALI Bus, max. 22.5 V DC
Show available options
Type of contact (k)
1x µ-contact, NO contact with tungsten pre-make contact
1x µ-contact, NO contact with tungsten pre-make contact
µ-contact, dry NO contact
Show available options
 µ-contact, dry NO contact, with Reed relay
Show available options
Range
10.00 m
10.00 m
8.00 m
Show available options
Degree / class of protection
IP20
IP20
IP54
Show available options
Colour
oyster white
pure white traffic white
oyster white
anthracite silver
Communication interface
switching output, switching output (2 Channel)
Slave
Show available options
switching output, switching output (2 Channel)
switching output, switching output (1 Channel) KNX
Show available options
 DALI-2 input device (BMS), DALI
Show available options
Mounting
flush-mounted
flush-mounted
surface-mounted
Show available options
product-set-tab-features
Designation Indoor 180-M-2C covering not included Set 92661-92632 Indoor 180-M-2C covering not included
Art.No. 92661 		Frame IP20 Indoor 180
Art.No. 92632
Voltage 110 – 240 V AC 50 / 60 Hz 110 – 240 V AC 50 / 60 Hz

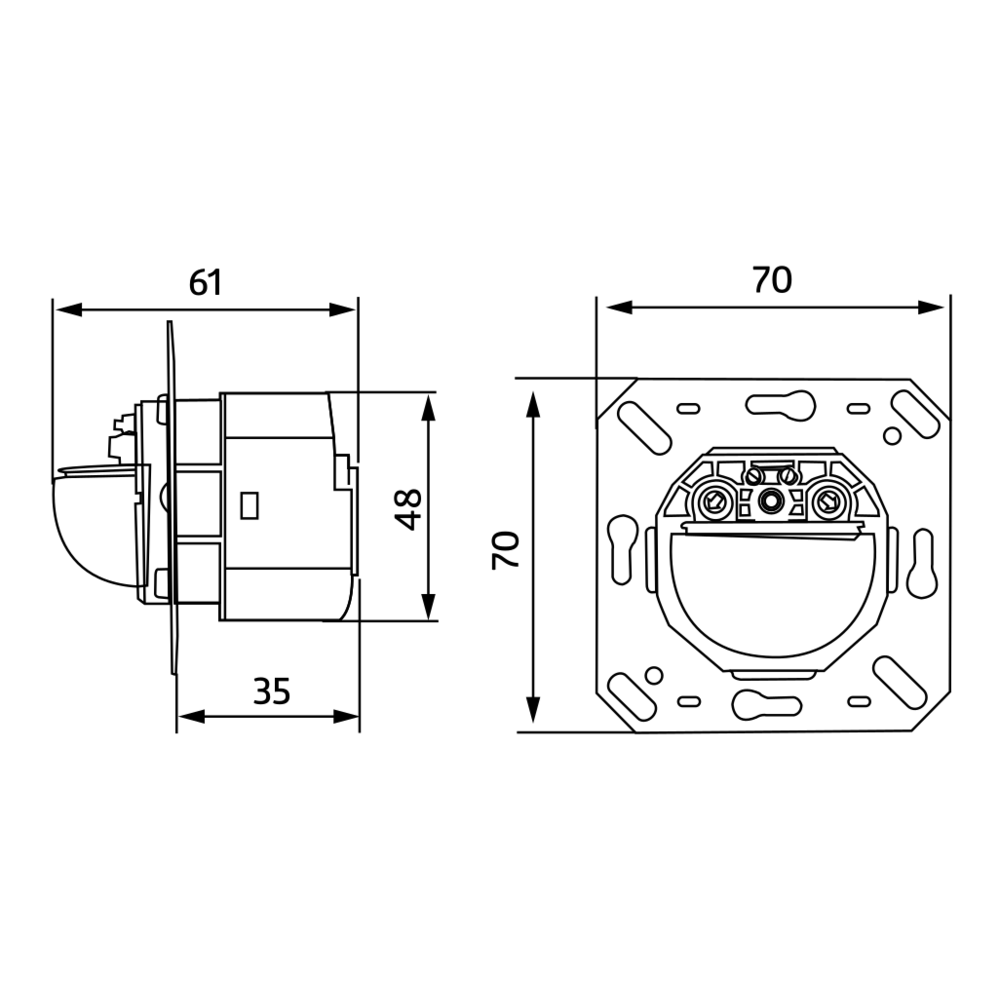

Dimensions covering not included 70 x 70 x 61 mm covering not included 70 x 70 x 61 mm 86 x 86 mm
Power consumption approx. 0.4 W approx. 0.4 W
Detection area horizontal 180° (Wall mounting) horizontal 180° (Wall mounting)
Range max. 10 m across
max. 3 m towards		 max. 10 m across
max. 3 m towards
Monitored area (tangential movement) 150 m² / 1.1 m mounting height 150 m² / 1.1 m mounting height
Mounting height min./max./recommended 1 m / 2.2 m / 1.1 m 1 m / 2.2 m / 1.1 m
Degree / class of protection IP20 / Class II IP20 / Class II IP20
Impact strength IK05 IK05
Ambient temperature -25 °C to +50 °C -25 °C to +50 °C
Housing polycarbonate, UV-resistant polycarbonate, UV-resistant polycarbonate, UV-resistant
Material color oyster white mat, similar to RAL1013 (92632) - oyster white mat, similar to RAL1013
Channel 1 (lighting control) Channel 1 (lighting control)
Switching power 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A		 2300 W, cos φ = 1
1150 VA, cos φ = 0.5
800 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact (k) 1x µ-contact, NO contact with tungsten pre-make contact 1x µ-contact, NO contact with tungsten pre-make contact
Follow-up time 15 sec – 30 min, Pulse 15 sec – 30 min, Pulse
Switch-on threshold 10 – 2000 Lux 10 – 2000 Lux
Channel 2 (HVAC control potential-free (dry)) Channel 2 (HVAC control potential-free (dry))
Switching power 3 A (230 V), cos φ = 1 3 A (230 V), cos φ = 1
Type of contact 1x µ-contact, dry NO contact 1x µ-contact, dry NO contact
Follow-up time 5 min – 120 min, Alarm pulse, Pulse 5 min – 120 min, Alarm pulse, Pulse

Set : Indoor 180-M-2C covering not included + Frame IP20 Indoor 180 oyster white mat, similar to RAL1013

Wall occupancy detector with acoustic sensor

One channel for light switching

One additional potential-free (dry) contact for HVAC

Version as master device

Detection area can be extended by using slave devices

Acoustic sensor independently adjustable

Noise automatically extends follow-up time

Available with covering (centre plate dimensions 60 x 60 mm) or without covering for use with covering (centre plate dimensions 50 x 50 mm) in 5 different colours

In combination with centre plates usable with current frame systems of various manufacturers

B.E.G. frames and centre plates for combination with other frame systems available

Factory settings 10 min and 500 lux (15 min HVAC)
