Discontinued product

Prod.No. 93128 EAN: 4007529931286 DL11-18-172-LED-3C

  • Voltage: 200 – 240 V AC 50 / 60 Hz

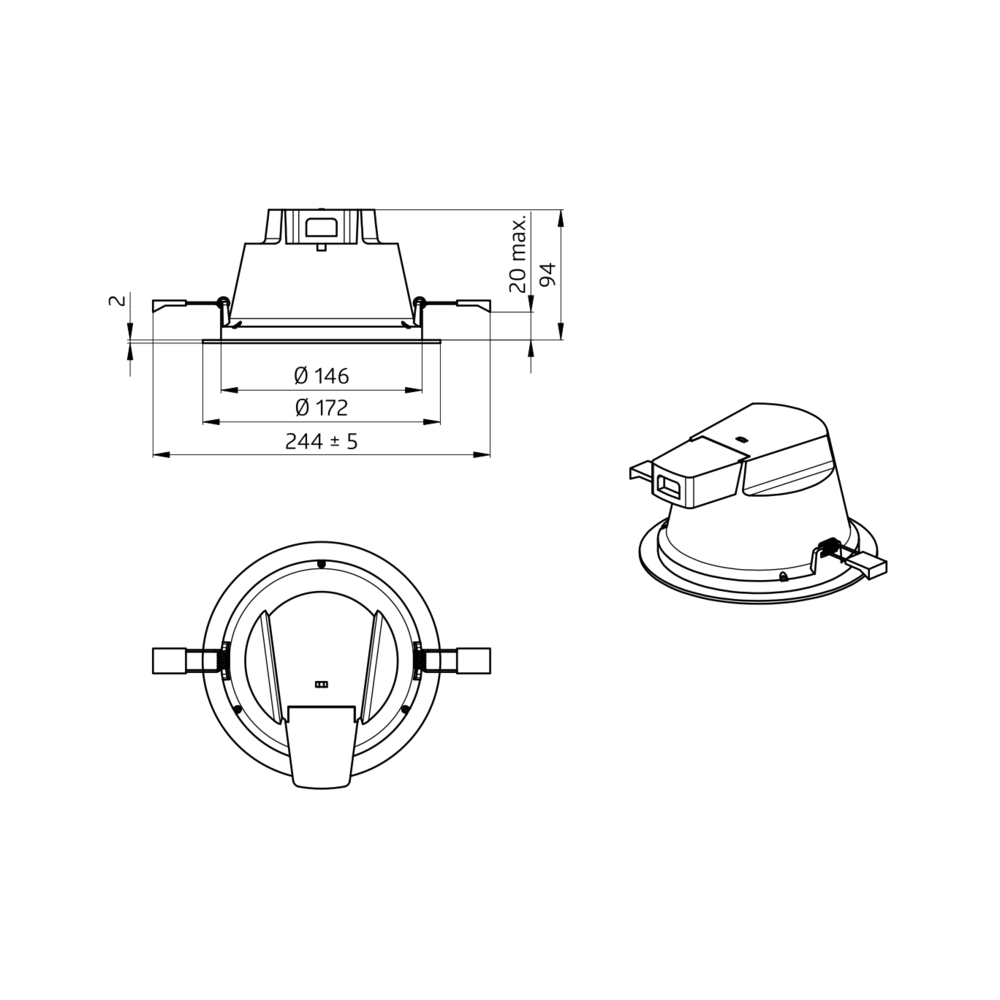

  • Dimensions: Ø 172 x 97 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Designation Value
Voltage: 200 – 240 V AC 50 / 60 Hz
Dimensions: Ø 172 x 97 mm
Colour temperature: 3000 / 4000 / 5700 K

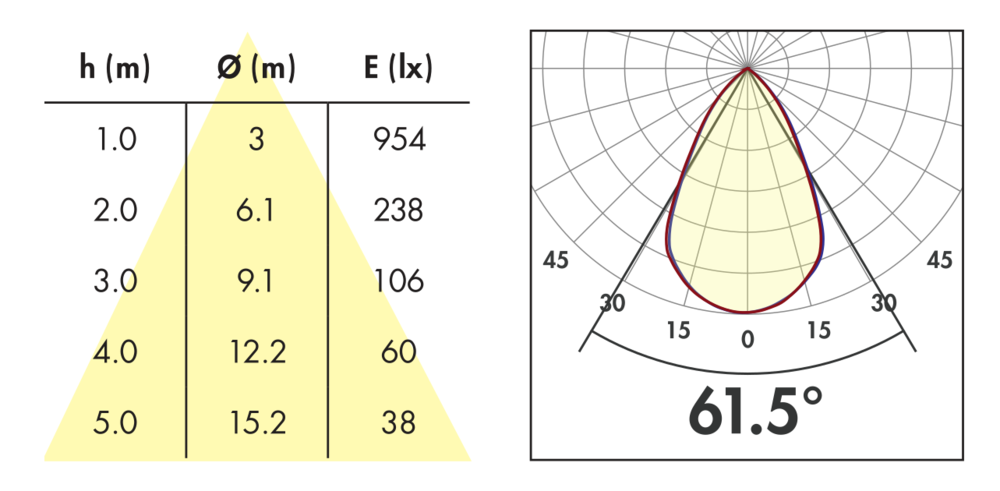

Luminous flux / intensity: 1800 / 2000 / 2200 lm
Anti-glare: UGR < 19
Efficiency: 100 / 111 / 122 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI > 83 / TM30: 82
Rated life time: 50000 h (L80/B50), 45000 h (L80/B10)
Power consumption: 18 W / PF 0.95
Degree / class of protection: IP20 / Class II
Ambient temperature: -15 °C to +35 °C
Housing: Plastic
Optics: Alumininium reflector
Material color: white

LED downlight for flush-mounting in ceilings

Robust plastic housing with integrated control gear

Aluminium reflector with good glare control UGR < 19

Very flat, white cover ring

Underside splash-proof (IP54), top housing IP20

Three colours in one light, switchable selection between warm, neutral or daylight white illumination

Energy efficient light with long service life > 50,000 hours

Every colour temperature is externally dimmable

Simple installation and electrical connection

Tender document 93128 Downloads
