Discontinued product

Prod.No. 93098 EAN: 4007529930982 DL10-18-172-LED-3C

  • Voltage: 200 – 240 V AC 50 / 60 Hz

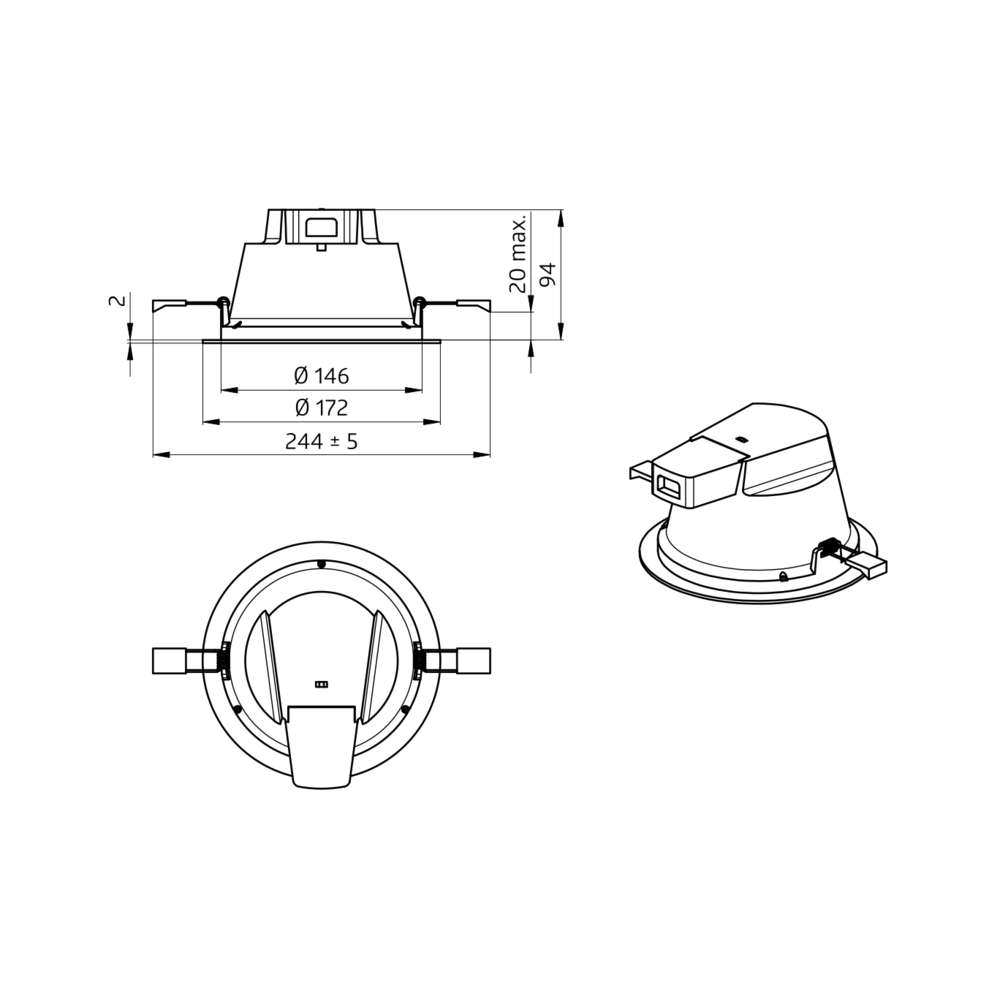

  • Dimensions: Ø 172 x 97 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Designation Value
Voltage: 200 – 240 V AC 50 / 60 Hz
Dimensions: Ø 172 x 97 mm
Colour temperature: 3000 / 4000 / 5700 K

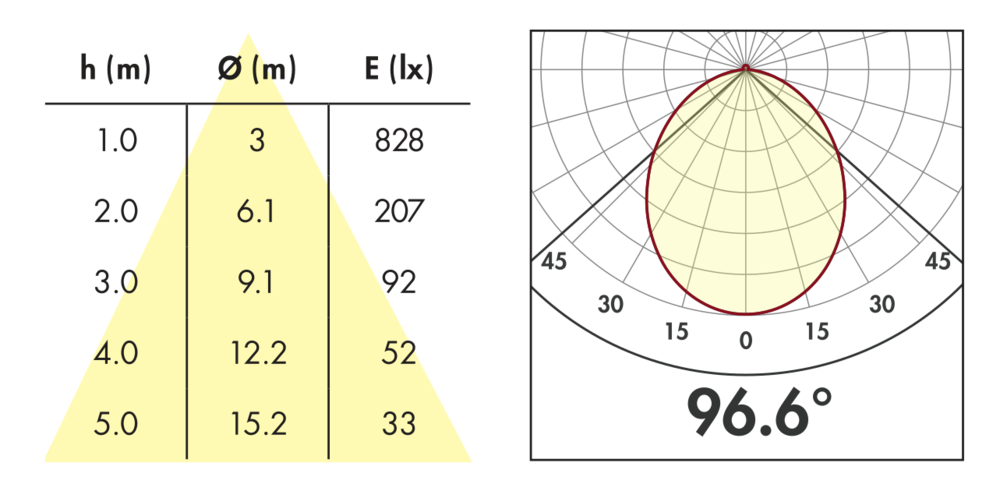

Luminous flux / intensity: 2000 / 2100 / 2200 lm
Efficiency: 111 / 117 / 122 lm/W
Photobiological safety: RG 0
Colour reproduction: CRI > 83 / TM30: 81
Rated life time: 50000 h (L80/B50), 45000 h (L80/B10)
Power consumption: 18 W / PF 0.95
Degree / class of protection: IP20 / Class II
Ambient temperature: -15 °C to +35 °C
Housing: Plastic
Lens: diffuser, white
Material color: white

LED downlight for flush-mounting in ceilings

Robust plastic housing with integrated control gear

Broad light distribution using diffused light covers

Very flat, white cover ring

Underside splash-proof (IP54), top housing IP20

Three colours in one light, switchable selection between warm, neutral or daylight white illumination

Energy efficient light with long service life > 50,000 hours

Every colour temperature is externally dimmable

Simple installation and electrical connection

Tender document 93098 Downloads
Short instruction Downloads

Alternative

white
Prod.No. 93621

AL8-25-300-LED-3C

  • Voltage: 200 – 240 V AC 50 Hz
  • Dimensions: Ø 300 x 42 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Go to product
14 m
white
Prod.No. 93141

AL8-25-300-LED-3C-HF

  • Voltage: 200 – 240 V AC 50 Hz
  • Dimensions: Ø 300 x 50 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Go to product
white
Prod.No. 93615

AL12-25-300-LED-3C

  • Voltage: 200 – 240 V AC 50 Hz
  • Dimensions: 300 x 300 x 41 mm
  • Colour temperature: 3000 / 4000 / 5700 K
Go to product
