Prod.No. 99122 EAN: 4007529991228 B.E.G. VPN Remote Hardware RUT951

  • Manufacturer and model: Teltonika / RUT951
  • Voltage: 9 – 30 V DC
  • Dimensions: 106 x 80 x 46 mm
Designation Value
Manufacturer and model: Teltonika / RUT951
Voltage: 9 – 30 V DC
Dimensions: 106 x 80 x 46 mm
Power consumption: max. 5 W
Degree / class of protection: IP20 / Class II
Ambient temperature: -40 °C to +75 °C
Housing: Aluminium
Material color: black

LTE router for DIN-rail mounting

Immediate commissioning with preconfigured software for B.E.G. DALI-SYS applications

Provision of the following services: NTP, DHCP, BEG-VPN

Integrated SIM card with 500MB data volume

Accompanying LTE and Wi-Fi antennas for mounting outside of control cabinets

Includes separately contained power supply 230VAC - 9VDC (1A)

3 LAN connections for the B.E.G. DALI-SYS IT infrastructure

1 WAN connection for secure and easy integration into the in-house IT infrastructure (access to B.E.G. ViSTATION-DALI-SYS)

Tender document 99122 Downloads
Short instruction Downloads
Information material Downloads

Alternative

white
Prod.No. 93480

ROUTER2-DALI-SYS-REG

  • Voltage: 5 V DC
  • Dimensions: 90 x 72 x 64 mm (4 TE)
  • Settings: Via integrated web server and compatible web browser
Go to product
white
Prod.No. 93355

ROUTER2-DALI-SYS-BACnet-REG

  • Voltage: 5 V DC
  • Dimensions: 90 x 72 x 64 mm (4 TE)
  • Settings: Via integrated web server and compatible web browser
Go to product
-
Prod.No. 90408

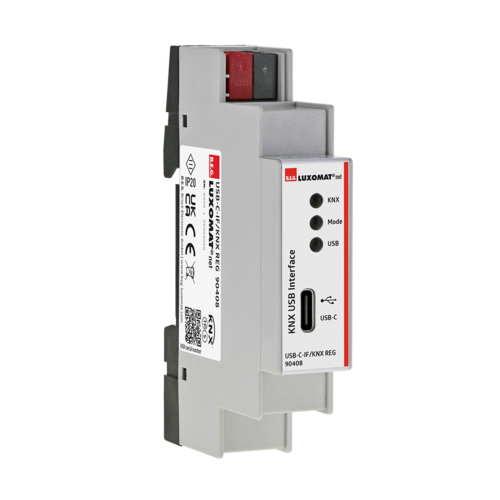

USB-C-IF/KNX REG
